Adaptive Reuse

Project Title : Semester 1 ASU

Duration : Aug 2022 - Dec 2022

skaters cover-01.png

COMPANY NAME - SKATERS
Phoenix being the hub of skateboarding, having one of the best skateparks in the US, Skaters decided to open an office in the area. The location of the office attracts many people and students as it is close to college campuses.
The company imports the skateboards from generators ( manufacturers). Once the skateboards are imported, Skaters design their logo and graphics and finalise the product at the office and it is then implemented at a warehouse. The company has different departments such as an admin department, accounts department, design department and marketing department with 20-25 number of employess.

Design Statement


Skaters have a unique appreciation for architecture. They unedrstand the quality of concrete, the grain of wood, and the incline of a structure.
They understand the way a landscape flows.
Skateboarding is a way of interpreting the built enviornment, and imgining the alternative uses of architecture.
The design will promote a sense of place and community by providing many opportunities to interact with each other. The goal is to bring energy and excitement for the employees because of the nature of the company. Mixing modern with rustic aesthetic and showcasing their brand decks will help the space have breaks enhancing their style.
The clinet wants to infuse this style with new technology ekements such as smart and energy efficient building .

Mood Board


Material Palette

STEEL
-Minimal hazards
-Environmentally friendly
-Economic growth

CONCRETE
- Fully recyclable content
-Excellent resistance to fire
-Durable
-Passive cooling using Thermal Mass
-Carbon Uptake

BRICK
-Locally sourced
- 100% Recyclable
- Durable

GLASS
- 100% Recyclable
- Reflects and absorb solar energy
- Less carbon emission

WOOD

- Natural

- Locally sourced

- Durable

- Recyclable

Dalylight Analysis

June

Low E Glass -

Energy Efficient Reduces UV damage Reduces Glare
Better Insulation
Allows Natural Light
Non Toxic and Safe

​

Large Doors -

Excellent thermal performance that don't sacrifice comfort or aesthetic appeal Allows Natural Light
Easy to maintain and clean

​

Skylight-

Allows Natural Light

Energy efficient
Promotes good health

Ventilation

​

Brick Facade -

Provides Thermal Comfort Energy Efficient Resilient
Durable
Fire resistant

Illuminance

December

Standard Day Passing - 17% Passing
Building ADF - 3.3%
82% Below Threshold,2% Above Threshold without shades

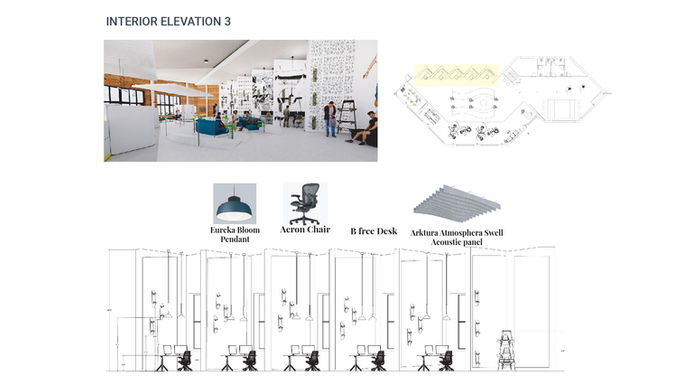

Technical Drawings

9. HALF PIPE
10. PANTRY
11. STORAGE
12. TOILETS
13. PRINTING ROOM

1. RECEPTION
2. WAITING AREA
3. INFORMAL SITTING
4. SKATE FRIENDLY PASSAGE
5. SEMI-PRIVATE WORK STATIONS
6. INFORMAL CONFERENCE

Renders

Landscape Planning

  • Increased Vegetation helps improve the micro climate and thermal comfort.

  • Grass acts as a natural coolant.

  • Trees and grass absorb carbon dioxide, remove dust and smoke, and release oxygen.

  • Improved Air Quality.

  • Trees and grass also reduces noice pollution.

  • Providing Native plants saves water and are sustainable(low water bills).

  • Use of Concrete for the skatepark - High thermal Mass - It absorbs heat from the atmosphere during the day(warm weather) and releases at night (cold weather).

  • Use of Solar Panel parking are energy effiecient, cost savings and eco friendly.

  • Adding vegetation increases health benefits. It lowers stress and blood pressure. It also improves concentration and memory.

  • It increases productivity of the employees.

  • Gives employees a morale boost.

  • Reduces levels of cortisol.
